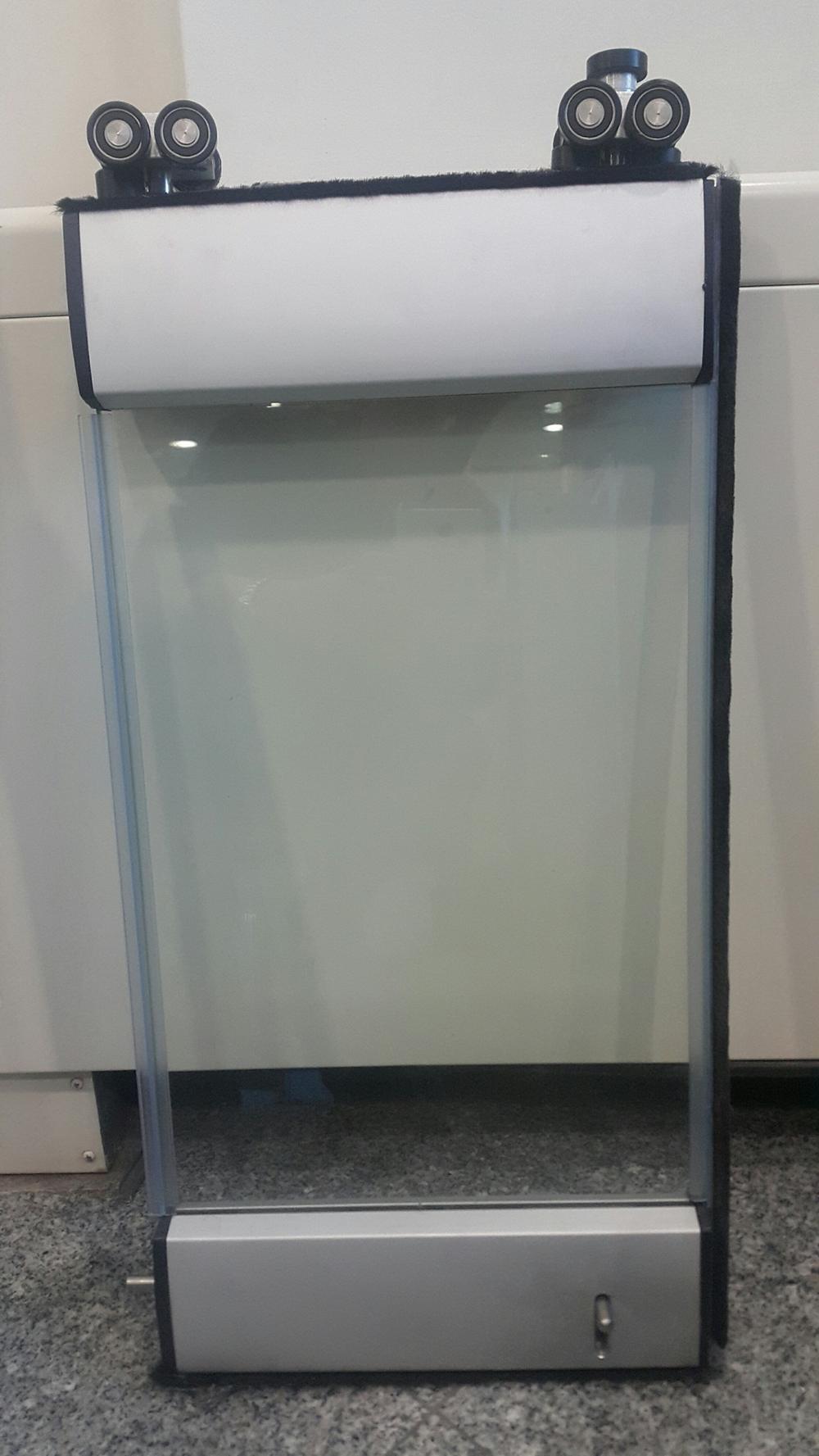

Folding Crystal System “F”
Technical characteristics of folding crystal system “F”
- Aluminum guide and parking space of the folding sheets made of aluminum foil. Dimensions:86mmx60mm, weight 4,3kg/m with a brush holder for sealing.
- Two rolls of aluminium with four ball bearings and two polyamide filaments, sheet mounting post 12mm, aluminum retaining pad glass holder.
- Calculated weight hung from each peach 130kg.
- Glass holder thick 3mm
- The profiles are anodized in natural anodize colour or in all RAL colours.
- Polycarbonic protective “Π” profile with a brush holder for sealing.
- Transparent aprons “H” for the connection and sealing of the crystals.
- Securite type crystals 10mm.
- Case locks/trolley.
- Aluminum phases on the top of the crystal with height 89mm and weight 0,45 kg/m, consist of a double hard brush of thickness 18mm for sealing.
- Aluminum phases put under the crystals, with height 89mm and weight 0,45 kg/m, have a double hard brush 18mm thick, and consist of trolleys for the leaf assurance.
- The support of the folding crystals requires the placement of metallic carriers.
